Surly Bill Trailer

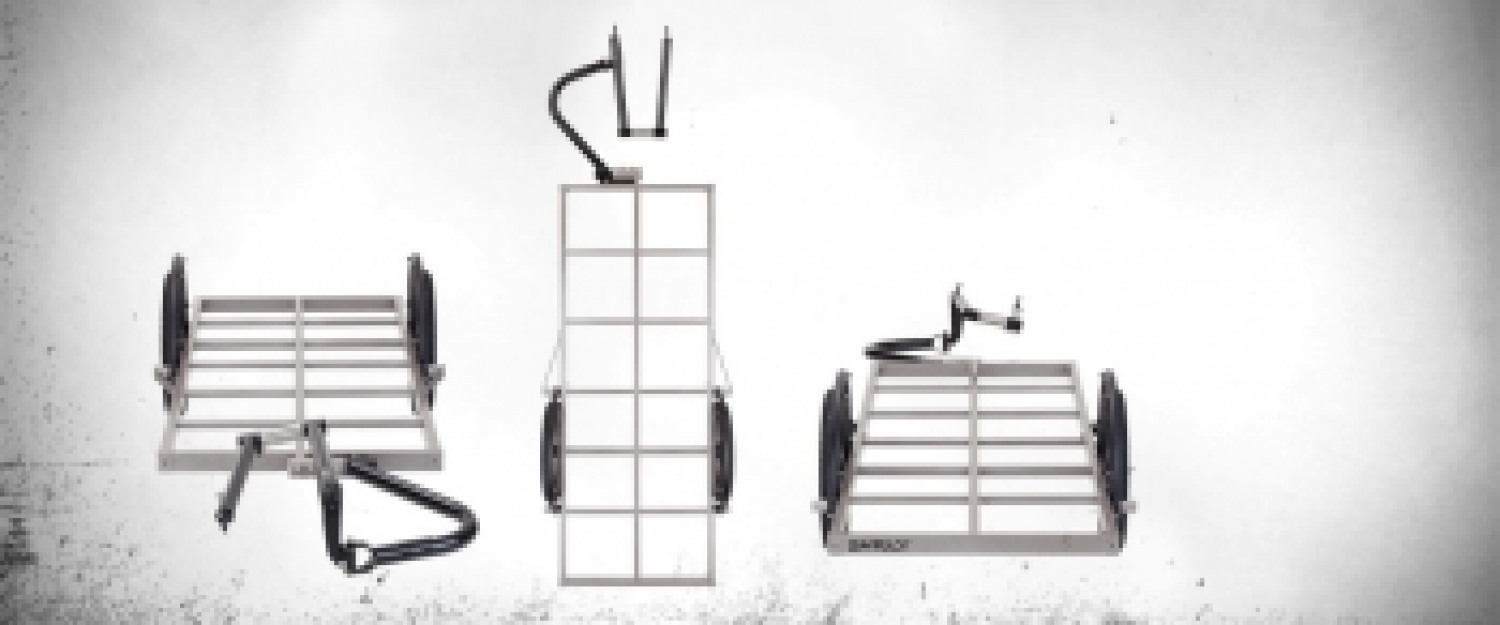

You are looking at the Bill trailer. Bill is 63 long and 24 wide. Its made out of TIG-welded 4130 Cro-moly steel for strength and long life, with stainless steel hardware for corrosion resistance. The beds have threaded eyelets for bolting down decking, corner posts, or creating other custom accessories using readily-accessible materials from your local hardware store, lumberyard or home improvement store.
The wheels are 16", keeping cargo low to the ground. 16" wheels are also stronger than larger diameter wheels favoured by many trailers. We designed our own hubs to meet the requirements of this frame. The rims are double-wall with stainless eyelets. The spokes are stainless steel, radially laced. Combined with smooth, easy rolling 1.95" tires, these are stout wheels designed specific to their purpose.
Our hitch system is designed to be as universal as possible. This hitch will likely fit your bike. It works with full-suspension frames, disc brakes, rear racks and fenders. It adjusts to accommodate hub widths from 120 145mm and allows you to align the centerline of the trailer on the centerline of the bike. It will work with bikes that have wheels as small as 20" and as large as 29" while keeping the bed level with the ground. This is especially important when you are hauling long items that hang off the back of the trailer (lumber, tubing, ladders, etc.). Our hitch will attach to your bicycle one of two ways: our direct mount Hitch Nuts or our Trailer Skewer. Our Hitch Nuts are 10 x 1mm threaded inserts that thread directly into any of our frames that come with our touring dropouts ala the ECR, Ogre and Troll. If you're using a QR rear hub, we also have a skewer mounting system available. If you're using a hub with a 3/8" threaded, solid axle... yeah we don't have that.
